2 Pin Metallized Aluminum Oxide Ceramic Insulator

  • 2 Pin Metallized Aluminum Oxide Ceramic Insulator
  • 2 Pin Metallized Aluminum Oxide Ceramic Insulator
  • 2 Pin Metallized Aluminum Oxide Ceramic Insulator
  • 2 Pin Metallized Aluminum Oxide Ceramic Insulator

2 Pin Metallized Aluminum Oxide Ceramic Insulator

    Unit Price: 1.5~5 USD
    Min. Order: 500 Piece/Pieces
    Packaging: Vacumm packaging
    Productivity: 50,000pcs/month
    Brand: Jinghui ceramics
    Transportation: Ocean,Land,Air,Express
    Place of Origin: China
    Supply Ability: 200,000pcs/month
    Certificate: RoHS
    HS Code: 8547100000
    Port: Shenzhen Port,Hongkong Port

Basic Info

Model No.: Standard or custom-made

Product Description

2 Pin Metallized Aluminum Oxide Ceramic Insulator

We offer a wide range of many different kinds of 1 pin, 2 pin or multi-pin alumina metallized ceramic insulator. All of them can be built as per customers' special requirement.

The main metallization type included as following:

1. Ceramic body base + Mo/Mn metallization..............................................2. Ceramic body base + Mo/Mn metallization + nickle plating

3. Ceramic body base + W metallization + gold plating...............................4. Ceramic body base + silver plating

We support different grade precision metallized ceramic insulators via fine grinding, CNC machining, lapping etc. Also we can provide prototyping service with a very small quantity batch.

Metallized ceramic isolator

Technical Key Parameters of metallized ceramics

Leak Rate
1x10-11Pa.m3/s
Metal Layer Tensile Strength
120Mpa
Volume Resistivity
108Ω•cm
Coefficient of Thermal Expansion
(6.5 ~ 8.0) × 10-6 /°C
Insulation Strength
18kV/mm (DC)
Dielectric Constant
9~10(1MHz, 20°C)
Cosmetic Quality:1. No cracks, no bubbles; 2. Evenly distributed glaze; 3. No contamination

The typical application of metallized ceramics

Widely used in vacuum interrupters, Electron tubes,Gas discharge tube, Vacuum capacitor,Vacuum thyristors, Surge arresters,Thyristor housings,Diode housings,Power grid tubes,Traveling wave tubes,Insulator rings and cylinder,X-ray tubes and so on.

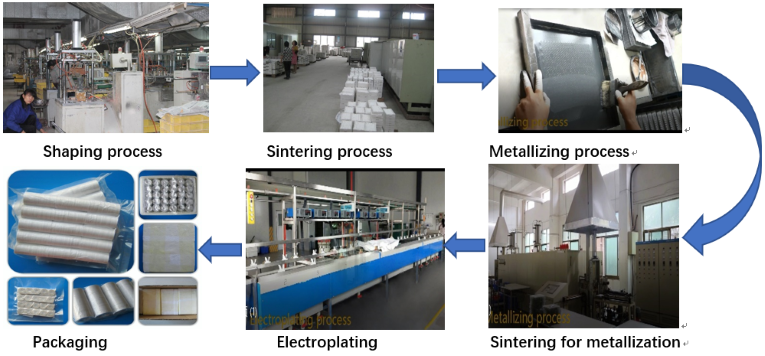

Main Manufacturing Flow Chat

We have a complete comprehensive of production equipment for metallized ceramics from shaping to electroplating.It helps us to make the dimensional consistency very well. Also, helping us to offer a competitive price.

Manufacturing Process for Metallized Ceramics


FAQs (Frequently Asked Questions)

Q 1. Is it available to provide customize products?

A: We could support custom-made demand as per different dimensions, design and metallization and plating.

Q 2. When can I get the price?

A: We regularly quote within 24 hours after we get your inquiry.

Q 3. How long does the whole procedure being worked out?
A: After you place an order, the manufacturing time is about 25 working days.

Q 4. What about the transportation and delivery date?

A: Normally we use Int`l express by our forwarder, or with client`s account number. It is about 3~5 working days.

Q 5. How to ensure the quality?

A: The dimension out of any batch will be carried out sampling inspection per International AQL standard. 100% cosmetic inspection will be done.

Q 6. Do you produce any other products?
A: Besides metalized ceramic, we also produce industrial ceramic plate, ceramic seals, boron nitride ceramics and silicon nitride ceramics.
